HomeBoron carbide sandblasting nozzlesBoron carbide sandblasting nozzle EVBC-5W/50

Boron carbide sandblasting nozzle EVBC-5W/50

$326.00

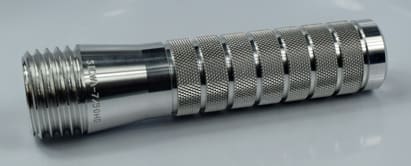

Boron carbide venturi sandblasting nozzle, EVBC-5W/50 – 1-1/4″ (32mm) entry 5/16″ bore, 50mm threads.

Weight 1.65 lbs
Dimensions 6.5 × 3 × 3 in
UNSPC

Brand/UPC

EVERBLAST

SKU EVBC-5W/50

Available on backorder

Add to wishlist Add to compare
SKU: EVBC-5W/50 Category: Tag:

Description

Description:

BORON CARBIDE SANDBLASTING NOZZLE EVBC-5W/50 HAS A 5/16″ BORE AND 1-1/4″  ENTRY. THIS TOUGH, LIGHT WEIGHT NOZZLE IS FITTED WITH AN EZ GRIP ARMORED JACKET AND COARSE THREADS  (50MM). ENHANCED PRODUCTIVITY FROM THE LONG LIFE BORON CARBIDE LINER. THIS BORON CARBIDE SANDBLASTING NOZZLE WILL WEAR LONGER THAN THE EQUIVALENT TUNGSTEN CARBIDE NOZZLE. IT IS ALSO THE NOZZLE YOU WILL WANT TO USE WHEN BLAST CLEANING WITH MEDIA LIKE ALUMINUM OXIDE.  IF YOU NEED A LARGER BORE AND HAVE SUFFICIENT AIR FROM YOU COMPRESSORE THEN TAKE A LOOK AT  OUR EVBC-6W/50.

Specifications:

Model: EVBC-5W/50

Part Number: 3241028

Bore: 5/16″

Entry: 1-1/4″

Liner: Boron Carbide.

Washer: NW-50mm

Threads: 2″ Coarse/ 50 mm / Contractor

 Why Boron Carbide?

Boron carbide is a wear resistant material that offers some advantages to the sandblasting operation. Nozzles with a Boron carbide liner are lighter weight than a comparable tungsten carbide nozzle. Nozzles with a Boron carbide liner have a longer working life in comparison to either tungsten carbide,  silicon carbide or silicon nitride (syalon).  Boron carbide nozzles will last longer than tungsten carbide or silicon lined nozzles. They work with a broad spectrum of abrasives from Aluminum oxide to Coal slag.  For example, a Boron carbide may last between 200 to 1000 hours when blasting with aluminum oxide. A comparable tungsten carbide nozzle may only last for 20 to 40 hours!







Additional information

Weight 1.65 lbs
Dimensions 6.5 × 3 × 3 in
UNSPC

Brand/UPC

EVERBLAST

SKU EVBC-5W/50
