Description

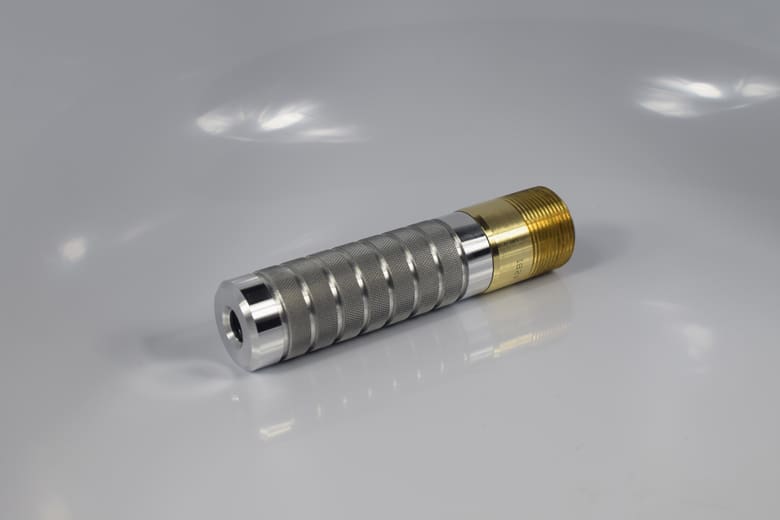

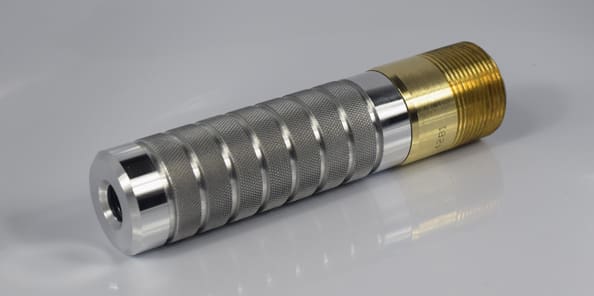

Boron Carbide EVBC-5 sandblasting nozzle.
Boron carbide EVBC-5 ABRASIVE BLAST CLEANING NOZZLE, HAS A 5/16″ BORE. IT INCLUDES A WEAR RESISTANT, BORON CARBIDE LINER, EZ GRIP ARMORED JACKET & FINE 1-1/4″ NPSM BRASS THREADS. THIS QUALITY ABRASIVE BLAST CLEANING NOZZLE CAN BE USED WITH A WIDE RANGE OF ABRASIVES INCLUDING ALUMINUM OXIDE. SHOWS LONGER LIFE WHEN COMPARED TO A TUNGSTEN CARBIDE OR SILICON NOZZLE OF SAME BORE. IF YOU ARE LOOKING FOR A HIGHER VELOCITY NOZZLE WITH INCREASED PERFORMANCE THEN TAKE A LOOK AT THE XLBC-5 NOZZLE.
PROS & CONS:
This nozzle offers longer wear resistance with aggressive media like aluminum oxide. Suggested use: Use instead of tungsten carbide nozzles, when blast cleaning with aluminum oxide or similar aggressive media. Trade off is higher cost and a more brittle liner material than tungsten carbide. The higher cost can be offset through longer work life than an equivalent nozzle with a tungsten carbide or silicon liner. See Everblast’s good nozzle practices. Here you can see more information on looking after nozzles and work life/wear comparisons between different nozzle liner materials High quality Boron Carbide nozzles should not be subjected to severe impact due to liner’s more brittle characteristics. As with all nozzles inspect nozzle liner each time before use. If liner shows cracks or any damage, replace immediately with a new nozzle.
EVBC-5 USES GASKET/WASHER NW-1514.
Model |
Part number |
Bore inch / mm
|
Entry inch / mm
|
Length inch/mm |
EVBC-5 |
3241022 |
5/16"/8.00 |
1" / 25.4 mm |
5-3/4"/146.00 |
Everblast designs, assembles, quality checks & ships all products from its facility near Chicago USA.
Additional information
| Weight | 1.65 lbs |
|---|---|
| Dimensions | 6.5 × 3 × 3 in |
| Brand/UPC | EVERBLAST |
| SKU | EVBC-5 |
Compare with similar items
Product title
More detailsPriceUnitNozzle Liner MaterialNozzle Style FilterBore Size FilterThread type FilterJacket style FilterDelivery timeFeature ProductCross ReferenceUNSPC
Boron carbide EVBC-5 blast cleaning nozzle
More details$324-lbs-Boron CarbideLong Venturi5/16" (8.00 mm)Fine threads – 1-1/4”Armored jckt. & threads3-4 daysYes--
XLBC-5 high performance Boron carbide sandblasting nozzle
More details$675-lbs-Boron CarbideHigh Performance - XLBC5/16" (8.00 mm)Fine threads – 1-1/4”Armored jckt. & threads3-4 daysYesSN159-5XL 12 , 2615950XL 12, 888-5000-305PB40141731
