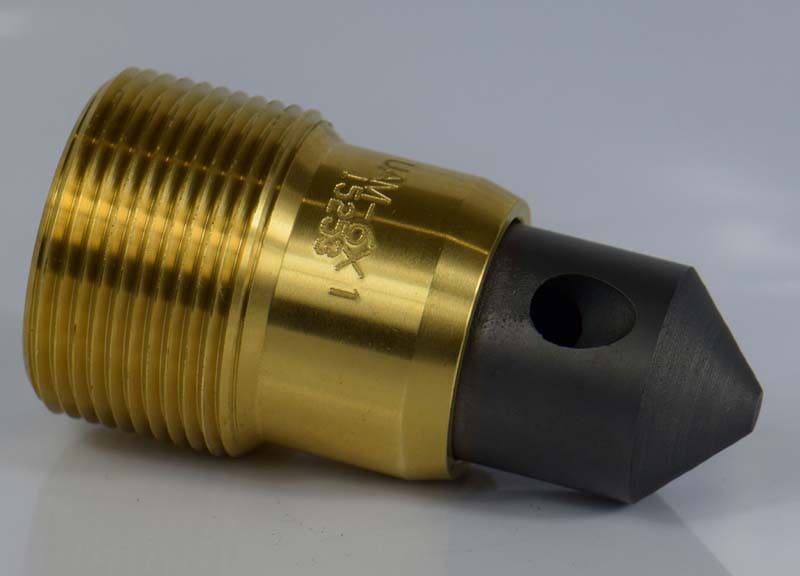

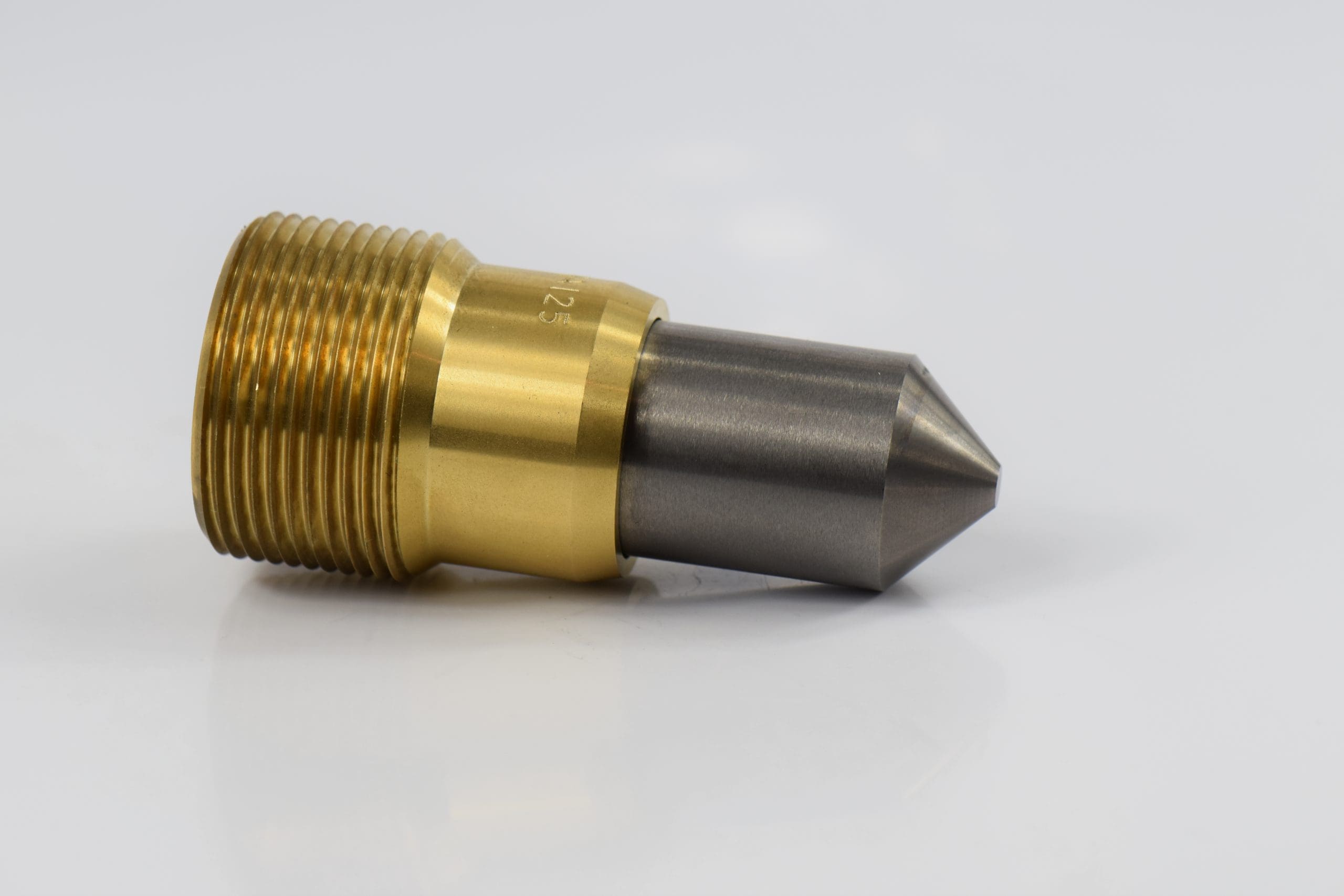

Angle Nozzle 45 degree – UAM-4X1
$203.00
Angle Nozzle UAM-4X1 forward shooting @ 45 degrees. Single exit 1/4″ Bore fitted with 1-1/4″ Brass armored threads
| Weight | 1.25 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
| Nozzle Liner Material | |
| Bore Size Filter | |
| Thread type Filter | |
| SKU | UAM-4X1 |
Available on backorder
Add to wishlistAdd to compareDescription
Angle Nozzle 45 degree 1/4″ Bore, forward shooting.
Angle Nozzle 45 degree 1/4″ Bore and one forward shooting exit. Fitted with tough tungsten carbide liner and armored brass jacket with 1-1/4″ NPSM threads. Angle nozzles are frequently used to clean hard to reach place e.g. inside pipes, tubes, other cylindrical objects, also useful in reaching behind steel support angles on bridges. If you are looking at blasting inside of a pipe and need more all round coverage then take a look at UAM-4X3.
Tungsten Carbide angle nozzles for sandblasting are available with one, two or three exit ports. Generally, the two and three port angle nozzles are used for blast cleaning inside tubes or U-shaped forms, where abrasive can only be aimed at side walls with an angle nozzle. Another area where carbide angle nozzles are useful is in getting behind angles on bridge work. Some jobs may need a combination of nozzles to reach inside tight angles or partially enclosed areas. Angle Nozzles are available with forward shooting exit ports at approx. 45 degrees, sideways shooting at 90 degrees and reverse angle nozzles with a port that shoots abrasive at approx. 135 degrees. Another useful tool for cleaning hard to reach areas is the Banana EVB-CB4-BC6 nozzle. Our curved nozzle is unique, in that it incorporates a single piece curved carbide liner.
Specs:
Model: UAM-4X1
Sku: 724116
Ports: One
Angle: 45 degree forward shooting
Material: Tungsten carbide
Bore: 1/4″
Threads: 1-1/4″ NPSM Brass)
Gasket: NW-1514 (Rubber)
